Coordinate systems

Coordinate systems with legos and surfaces

      histogram/file 1 pawhists.hbook
      zon 2 2
2     OPT UTIT
2     TITLE 'Polar coordinates' U
1     HI/PL 200 LEGO,POL
      title 'Cylindrical coordinates' U
1     HI/PL 200 LEGO,CYL
      title 'Spherical coordinates' U
1     HI/PL 200 LEGO,SPH
      title 'Pseudo rapidy coordinates' U
1     HI/PL 200 LEGO,PSD
      close 1

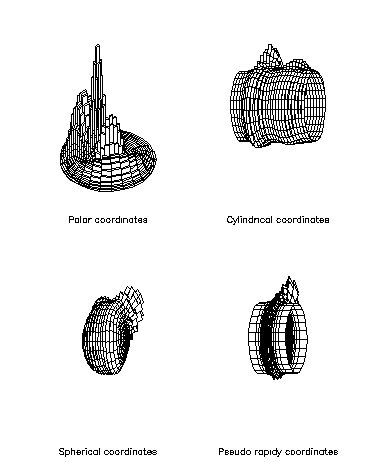

  1. Legos and Surfaces plot can be drawn in Polar, Cylindrical, Spherical and Pseudo rapidity coordinates.

    Note also:

  2. The option UTIT allows to use ``user title'' on histogram. To define the title itself, the command TITLE should be used with the option U . Without this option TITLE define the global title.
