Graphical operations on histograms


Graphical operations on histograms (Keep and Add)

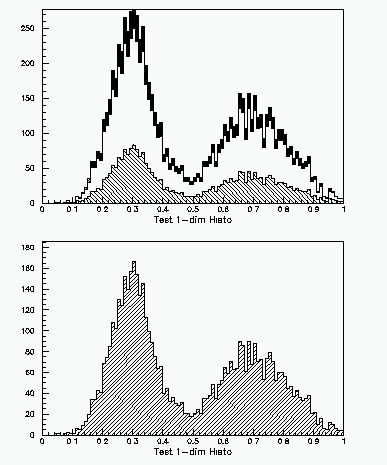

histogram/file 45 pawhists.hbook zone 1 2 set htyp 245 1 H/PL 120 K set htyp 254 1 H/PL 110 set htyp 2 H/PL 110 + set htyp 144 hi/pl 130 +

  1. The option `` K '' in the command HIST/PLOT keep the histogram in memory at the graphics level to allows updating. If no zone is defined, the option `` K '' is not necessary.
  2. If an histogram is kept in memory (automatically or via option `` K '') it is possible to add the content of an other histogram with option ``+''.
