Subranges in histogram identifiers

Usage of subranges in histogram identifiers
histogram/file 1 pawhists.hbook
hrin 0
close 1
4 TRACE ON
zon 2 2
1 HI/PL 110(56:95) E
4 * Comments are not printed in TRACE mode
hi/pl 200(8:8,) box
3 HI/PL 200(3:15,3:15) CONT
4 TRACE OFF
2 hi/pl 200(0.:12,0.1:0.5) LEGO

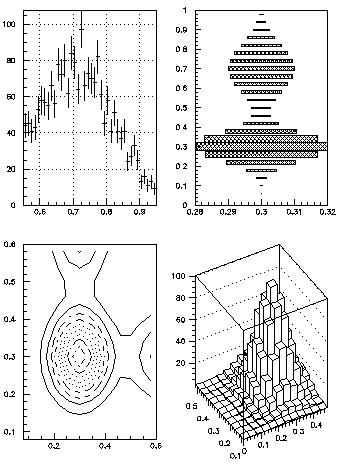

- This example shows how to plot subranges of 1D or 2D histograms.
The different possibility to give the range are the following:
- id(n1:n2) with n1 =< n2 .
- id(n1:) in this case n2 = number of bins .
- id(:n2) in this case n1 = 1 .
- If n1 or n2 are integer they are consider as bin
numbers. But if they are real they are consider axis values.
Note that bin values and axis values can be mixed inside the
same range definition.
- In case of 2D histograms, the two ranges are separate with ``,''.
Note also:
- The
TRACE
command sets ON or OFF the trace mode.
When this mode is on, all the command executed inside macros are
displayed on the standard output.
Ouput of the TRACE mode
>>>>> zon 2 2
>>>>> HI/PL 110(56:95) E
>>>>> hi/pl 200(8:8,) box
>>>>> HI/PL 200(3:15,3:15) CONT
>>>>> TRACE OFF

Last update: 96/05/24 17.21 Olivier.Couet@Cern.Ch
