3D functions drawing

 FUNCTION/DRAW

      zon 2 2
1     FUN/DRAW X**2+Y**2+Z**2=1
2     RANGE 0 1
1     FUN/DRAW X**2+Y**2+Z**2=1
2     RANGE 0 1 0 1
1     FUN/DRAW X**2+Y**2+Z**2=1
2     RANGE 0 1 0 1 0 1
1     FUN/DRAW X**2+Y**2+Z**2=1

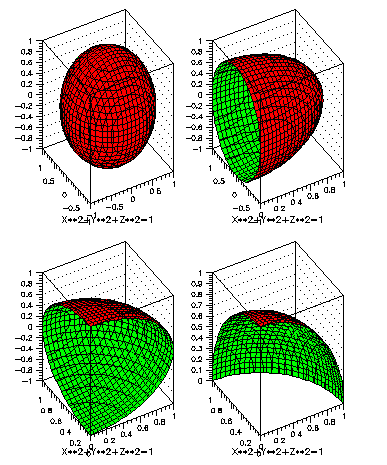

  1. This command draws a sphere of radius 1. The function can be also a COMIS program.
  2. The command RANGE modify the X, Y and Z range in which the function is drawn.
