Histograms creation

Creation of one and two dimensional histograms

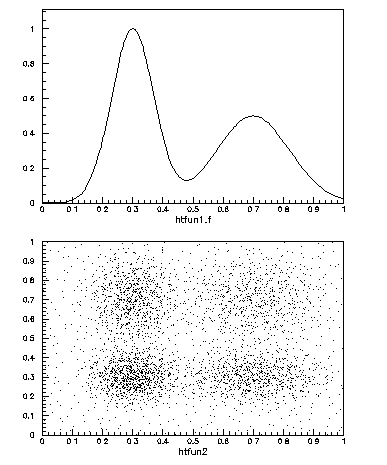

      zon 1 2
      function/fun1 100 htfun1.f 100. 0. 1.
      1dh  110 'Test 1-dim Histo' 100 0. 1. 1000.
1     CALL UROUT.F(5000)
6     FUN/FUN2 200 HTFUN2 25. 0. 1. 25. 0. 1. CONT
      hi/li
3 5   HISTOGRAM/FILE 1 PAWHISTS.HBOOK 1024 N
4     HROUT 0

The FORTRAN Routines HTFUN1,HTFUN2 and UROUT

      function htfun1(x)                   6 function htfun2(x,y
      data c1,c2,xm1,xm2,xs1,xs2             htfun2=100*htfun1(x)*htfun1(y)
     +/1.,0.5,0.3,0.7,0.07,0.12/             end
      a1=-0.5*((x-xm1)/xs1)**2
      a2=-0.5*((x-xm2)/xs2)**2
      x1=c1                                  subroutine urout(nev)
      x2=c2                                  do i=1,nev
      if(abs(a1).gt.0.0001)x1=c1*exp(a1)   2   x=HRNDM1(100,I)
      if(abs(a2).gt.0.0001)x2=c2*exp(a2)   2   CALL HFILL(110,X,0.,1.)
      htfun1=x1+x2                           enddo
      end                                    end
  1. In this example COMIS is used in the simplest way, via the command CALL ( CALL UROUT.F ). This command just calls the FORTRAN routine given as parameter and executes it.
  2. It is possible to call several routines of the CERN library. HELP CALL gives the list of available routines (see next page). Here the routines HRNDM1 and HFILL (to fill an histogram) are called by UROUT .
  3. It is possible to store the histograms in memory into a direct access file opened via the command HIST/FILE . Here CHOPT=N means: ``create a New HBOOK file''. If the first parameter ( LUN ) is 0 the next free logical unit will be used.
  4. To store an histogram in a file it is enough to execute the command HROUT . HROUT 0 (or HROUT * ) stores all the histograms currently in memory.
  5. Several files can be attached via HIST/FILE during a PAW session. To change the current file it is enough to execute CD //LUNn where `` n '' is the first parameter given to HI/FILE . Note that the command LD // gives the list of all the files currently attached. Each attached direct access file is similar to a directory (cf UNIX).
  6. HTFUN2 is in the file htfun1.f . That is why it can be invoked without the extension .f because it has been compiled during the CALL to htfun1 .
Most of the time, the histograms are created and filled outside PAW in batch programs calling HBOOK directly, and after interactively analyzed with PAW.

The following routines from the CERN Program Library can be called:
From HBOOK

      HBOOK1,HBOOK2,HBOOKN,HFILL,HF1,HPRINT,HDELET,HRESET
      HFITGA,HFITPO,HFITEX,HPROJ1,HPROJ2,HFN,HGFIT,HRENID
      HROPEN,PAOPEN,PACLOS,PAREAD,PAWRIT,HCDIR,HGIVEN,HKIND
      HTITLE,HBFUN1,HBFUN2,HRNDM1,HRNDM2,HBARX,HBARY,HDIFFB
      HPAK,HPAKE,HUNPAK,HGIVE,HGN,HGNF,HGNPAR,HF2,HFF1,HFF2
      HRIN,HROUT,HI,HIE,HIX,HIJ,HIF,HIDALL,HNOENT,HX,HXY
      HTITLE,HCOPY,HSTATI,HBPROF,HOPERA,HIDOPT,HDERIV,HBAR2
      HMAXIM,HMINIM,HMAX,HMIN,HSUM,HNORMA,HMCINI,HMCMLL
      HEXIST,HREND,HRGET,HRPUT,HSCR,HFIND,HCX,HCXY,HLABEL
      HBPROX,HBPROY,HBANDX,HBANDY,HBSLIX,HBSLIY,HPROF2
      HBOOKB,HBSTAT,HDIFF,HUNPKE,HREBIN,HERROR,HGNTB,HSTAF
      HOUTPU,HERMES,HISTDO,HFUNC,HXI,HIJXY,HXYIJ,HLPOS,HFC1
      HSPLI1,HSPLI2,HMDIR,HLDIR,HLOCAT,HFITH,HFITV,HFINAM
      HBNT,HBNAME,HBNAMC,HFNT,HFNTB,HGNT,HGNTF,HGNTV,HBSET
      HRENAME,HNTDUP

From HPLOT

      HPLOT,HPLSYM,HPLERR,HPLEGO,HPLNT,HPLSUR,HPLSOF,HPLFRA
      HPLABL,HPLSET,HPLGIV,HPLOC,HPLTOC,HPLNEW,HPLOPT

From ZEBRA

      MZSTOR,MZDIV,MZLINK,MZWORK,MZBOOK,MZDROP,MZPUSH
      MZWIPE,MZGARB,MZFORM,LZFIND,LZFID,DZSHOW,DZVERI
      FZIN,FZOUT,FZFILE,FZENDI,FZENDO
      RZCDIR,RZLDIR,RZFILE,RZEND,RZIN,RZOUT,RZVIN,RZVOUT
      RZOPEN,RZIODO,RZCLOS,RZQUOT

From KUIP

      KUGETV,KUDPAR,KUVECT,KILEXP,KUTIME,KUEXEL,KUPROS
      KUNWG,KUCMD,KUGUID,KUNDPV,KUPAR,KUPVAL,KUACT

From HIGZ

      IPL,IPM,IFA,IGTEXT,IGBOX,IGAXIS,IGPIE,IGRAPH,IGHIST
      IGARC,IGLBL,IGRNG,IGMETA,IGSA,IGSET,IRQLC,IRQST,ISCR
      ISELNT,ISFAIS,ISFASI,ISLN,ISMK,ISVP,ISWN,ITX,ICLRWK
      IGPAVE,IGTERM,ISFACI,IGHTOR,IGONT

From KERNLIB

      VZERO,UCOPY,RANNOR,LENOCC,SBIT0,SBIT1,SBYT
      JBIT,JBYT,UCTOH,UHTOC,CLTOU,CUTOL,ERF,ERFC,FREQ,GAMMA
      PROB,DENLAN,DSTLAN,DIFLAN,XM1LAN,XM2LAN,RANLAN
      RNDM,RDMIN,RDMOUT,SORTZV,CSF77

The following common blocks may be referenced

     /PAWC/, /QUEST/, /KCWORK/, /PAWPAR/, /PAWIDN/
     /HCFITS/, /HCFITD/, /RZCLUN/
