Histogram operations

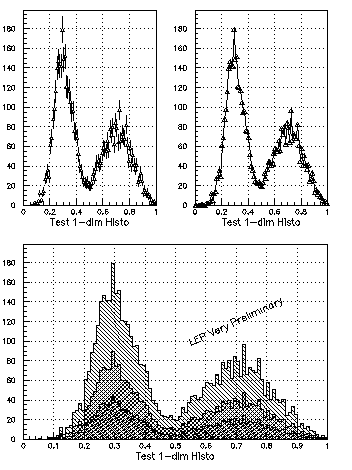

Perform operations on histograms read from file and save results

1 HISTOGRAM/FILE 1 PAWHISTS.HBOOK ! U hrin * zon 2 2 opt grid set mtyp 26 hi/pl 110 e hi/pl 110 pl zon 1 2 2 s 2 HI/OP/ADD 110 110 120 0.5 0. hi/op/add 110 110 130 0.25 0. set htyp 245 hi/pl 110 set htyp 254 3 HI/PL //PAWC/120 s set htyp 253 hi/pl //PAWC/130 s text 0.55 95. 'LEP Very Preliminary' 0.35 25. hrout 0

  1. The option `` U '' (for Update) in the command HIST/FILE , is used when the user wants to change the content of an existing histogram file by adding a new histogram ( HROUT ) or deleting an histogram ( HSCRATCH ).
  2. It is possible to perform operations between histograms like addition with the commands in the menu HISTOGRAM/OPERATIONS .
  3. The memory, like the attached files, can be considered as a directory. This is the current directory by default and //PAWC is its name. The command HI/PL //PAWC/id plots the histogram `` id '' in memory while the current directory is //LUN1 .

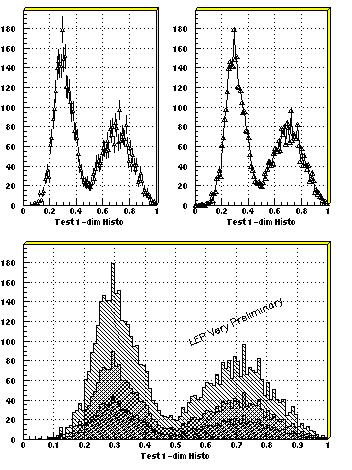

Some ``cosmetic modifications'' on PAWEX13

histogram/file 1 pawhists.hbook ! u hrin 0 zon 2 2 opt grid 1 SET *FON -60 2 SET BWID 4 3 SET BCOL 1.5 set mtyp 26 hi/pl 110 e hi/pl 110 pl zon 1 2 2 s hi/op/add 110 110 120 0.5 0. hi/op/add 110 110 130 0.25 0. set htyp 245 hi/pl 110 set htyp 254 hi/pl //pawc/120 s set htyp 253 hi/pl //PAWC/130 s 4 SET CHHE .35 4 SET TANG 25. 4 ITX 0.55 95. 'LEP Very Preliminary' hrout 0

  1. All the text fonts used for HISTO/PLOT are set to -60.
  2. The line width for the boxes around the histograms is set to 4 pixels. Like for the fonts it is possible to do SET *WID to set all the width available in the SET command.
  3. The color of the shadow around the histograms is set to 5 (Yellow), it appears grey on black and white PostScript printers.
  4. To access hardware fonts (ie PostScript fonts) the command ITX and its related attributes should be used.



Last update: 96/05/24 17.20
