Histograms attributes

Histograms can have attributes. They are stored in the histogram data structure.

IDOPT

histogram/file 1 pawhists.hbook zone 1 3 hist/plot 110 close 1 1 IDOPT 110 LOGY 1 IDOPT 110 ERRO h/pl 110 2 HISTOGRAM/FILE 2 PAWHISTSNEW.HBOOK ! N 2 HROUT 110 2 CLOSE 2 2 H/DEL * 2 HISTOGRAM/FILE 1 PAWHISTSNEW.HBOOK 2 HISTO/PLOT 110

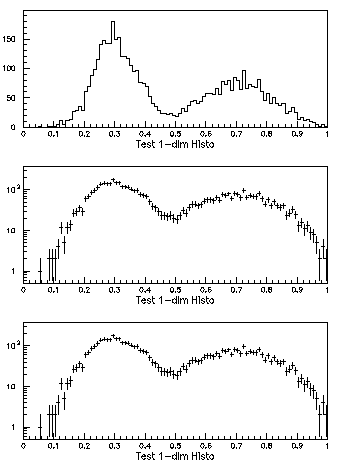

  1. The command IDOPT , allows to set attributes on a given histogram. Here, the histogram 110 will have logarithmic scale on the Y axis and will be drawn with error bars. These options are independant from the global settings define via the command OPTION .
  2. Here we show that the options set via IDOPT are stored in the histogram data stucture.
