Coordinate systems

Coordinate systems with legos and surfaces

histogram/file 1 pawhists.hbook zon 2 2 2 OPT UTIT 2 TITLE 'Polar coordinates' U 1 HI/PL 200 LEGO,POL title 'Cylindrical coordinates' U 1 HI/PL 200 LEGO,CYL title 'Spherical coordinates' U 1 HI/PL 200 LEGO,SPH title 'Pseudo rapidy coordinates' U 1 HI/PL 200 LEGO,PSD close 1

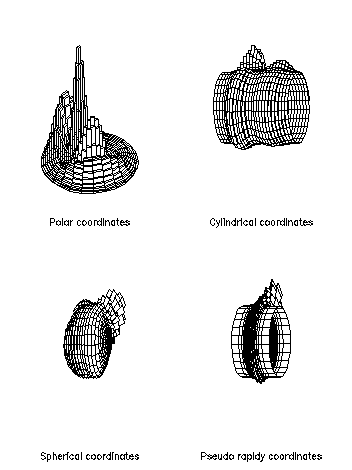

  1. Legos and Surfaces plot can be drawn in Polar, Cylindrical, Spherical and Pseudo rapidity coordinates.

    Note also:

  2. The option UTIT allows to use ``user title'' on histogram. To define the title itself, the command TITLE should be used with the option U . Without this option TITLE define the global title.



Last update: 96/05/24 17.21
