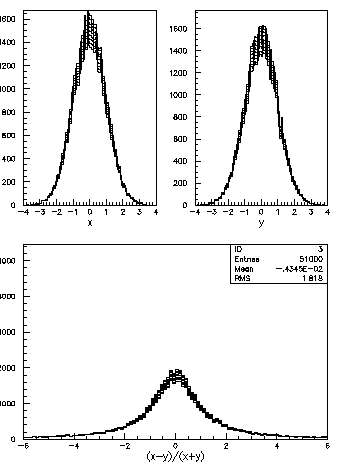

Updating plots in real time (2)

Keep and Update

MACRO UPDATE 1=50 1 APPLICATION COMIS QUIT subroutine fill do 10 i=1,1000 call rannor(x,y) call hf1(1,x,1.) call hf1(2,y,1.) call hf1(3,(x-y)/(x+y),1.) 10 continue end 1 QUIT cd //pawc h/del 0 1dhisto 1 x 100 -4 4 1dhisto 2 y 100 -4 4 1dhisto 3 (x-y)/(x+y) 100 -6 6 zone 2 2 1 CALL FILL Set 2buf 1 h/pl 1 k h/pl 2 k zon 1 2 2 s h/pl 3 k 2 do i=1,[1] opt NSTA 1 CALL FILL h/pl 1 u h/pl 2 u opt STAT h/pl 3 u call igterm enddo

  1. The COMIS routines can be declare via the an APPLICATION . When a such routine is called, the extension .f should not be specified.
  2. On Unix systems, you can activate the command below instead of the loop

    IDLE 1 'opt nsta;call fill; h/pl 1 u ; h/pl 2 u ;op stat; h/pl 3 u ;call igterm'

    The command IDLE , execute a command if program is idle. The command string is executed if there was no keyboard activity during SEC seconds.

     * KUIP/IDLE SEC [ STRING ]
