Merge pictures onto one plot

Merge pictures onto one plot
histogram/file 1 pawhists.hbook
5 SWITCH Z
1 PIC/CR MERGE2
set htyp 354
hi/pl 110
set htyp 345
hi/pl 110(31:40) s
1 PIC/CR MERGE1
set htyp 354
hi/pl 110(31:40)
2 IZPICT MERGE2 C
switch g
3 PI/MERGE MERGE1 .5 .5 .3 D
4 PI/DEL *

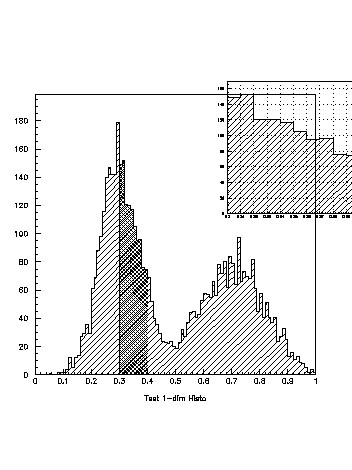

This example shows some application of the HIGZ pictures.

-
PI/CREATE
allows to create a new graphic picture in memory.
After this call, all the graphic generated
-
IZPICT
is the generic function to perform all kind of
actions on the HIGZ pictures. Here the picture MERGE2 is set as
the current picture.
-
PI/MERGE
allows to merge a picture into the current picture.
-
PI/DEL
allows to delete a picture from memory. To
delete a picture from a file the command
SCRATCH
should be used.
- The command SWITCH set the graphics switch to control plotting
output to terminal (G) and/or picture in memory (Z).

Last update: 96/05/24 17.24 Olivier.Couet@Cern.Ch
