3D functions drawing

FUNCTION/DRAW

zon 2 2 1 FUN/DRAW X**2+Y**2+Z**2=1 2 RANGE 0 1 1 FUN/DRAW X**2+Y**2+Z**2=1 2 RANGE 0 1 0 1 1 FUN/DRAW X**2+Y**2+Z**2=1 2 RANGE 0 1 0 1 0 1 1 FUN/DRAW X**2+Y**2+Z**2=1

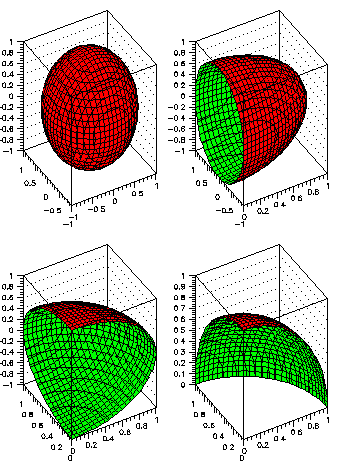

  1. This command draws a sphere of radius 1. The function can be also a COMIS program.
  2. The command RANGE modify the X, Y and Z range in which the function is drawn.



Last update: 96/05/24 17.19
